Aluminum Strip For Transformer Winding | Transformer Aluminum
- MOQ:2 to 5MT
- Port:Shanghai,Qing Dao, China
- Payment Terms:L/C,TT,CAD
- Delivry Time:15 to 30days
-
Details
Aluminum Strip For Transformer/ Aluminum Strip For Transformer Winding/ Transformer Aluminum Strip/ Aluminum Foil For Transformer
Transformers are designed and built with copper or aluminum winding. But transformers using aluminum strip winding have advantage of small size, light weight, good insulation properties, flame retardant, non-polluting, partial discharge, resistant to moisture, smooth and reliable operation, low noise, and low maintenance cost.
In dry type transformers, aluminum winding have been commonly used. Aluminum strip can replace copper conductor in distribution transformers. Aluminum foil and sheet in appropriate strip widths and lengths have widely replaced wire in electrical transformers. Demand for aluminum strip/foil using for oil transformer is new and will be more.
1. The strip conductor is of high conductivity annealed quality.

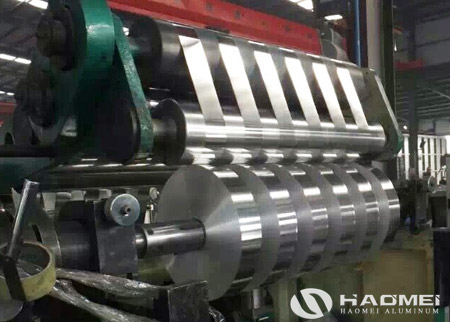

2. Slitting is closely controlled to assure strip free of cracks, roughness, scaling, stretch marks.
3. Paper is interleaved between layers of each aluminum coil according to requirement of clients.
4. Each coil is tightly wound.
5. Coil is packed with eye to wall or eye to sky accordingly by sea worthy wooden pallet or box.
6. Foil is free of dents, surface defects, waviness, scale, or any other imperfections which would cause problems in either the winding, performance, or reliability of a quality manufactured dry or wet transformer.
7. The surface and edges of the foil is free of burrs and imperfections. The edges conform to a Round Edge.
8. The strip is shipped in tightly wound rolls with proper edge register.
| Specification of Aluminum Strips and Aluminum Foils For Transformer | |
| Grade & Temper | 1050/1060/1070/1350-HO(O) |
| Thickness | 0.2-3.0 mm |
| Width | 20-1350 mm |
| Inner Diameter |
150/300/400/500 mm |
| Conductivity Number(% IACS) | ≥61 |
| Resistivity number (Ω·mm² /m) | ≤0.027548 |
| Elongation (%) | 20 |
| Tensile strength(Mpa) | >60 |
| Density in 20°C | 2.7kg/cm3 |
| Note: | Satisfy Certificate RoHS, SGS, REACH, YS/T 713-2009 |
| Wrought aluminum and aluminum alloy chemical composition | |||||||||
| Grade |
Al(%) MIN |
Si(%) Max |
Fe(%) Max |
Cu(%) Max |
MN(%) Max |
Zn(%) Max |
Mg(%) Max |
Ti(%) Max |
Other elements(%) |
| 1050 | 99.5 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 0.03 |
| 1060 | 99.6 | 0.25 | 0.35 | 0.05 | 0.03 | 0.05 | 0.03 | 0.03 | 0.03 |
| 1070 | 99.7 | 0.25 | 0.04 | 0.03 | 0.04 | 0.04 | 0.03 | 0.03 | |
| 1350 | 99.5 | 0.1 | 0.05 | 0.01 | 0.01 | --- | --- | 0.03 | |
